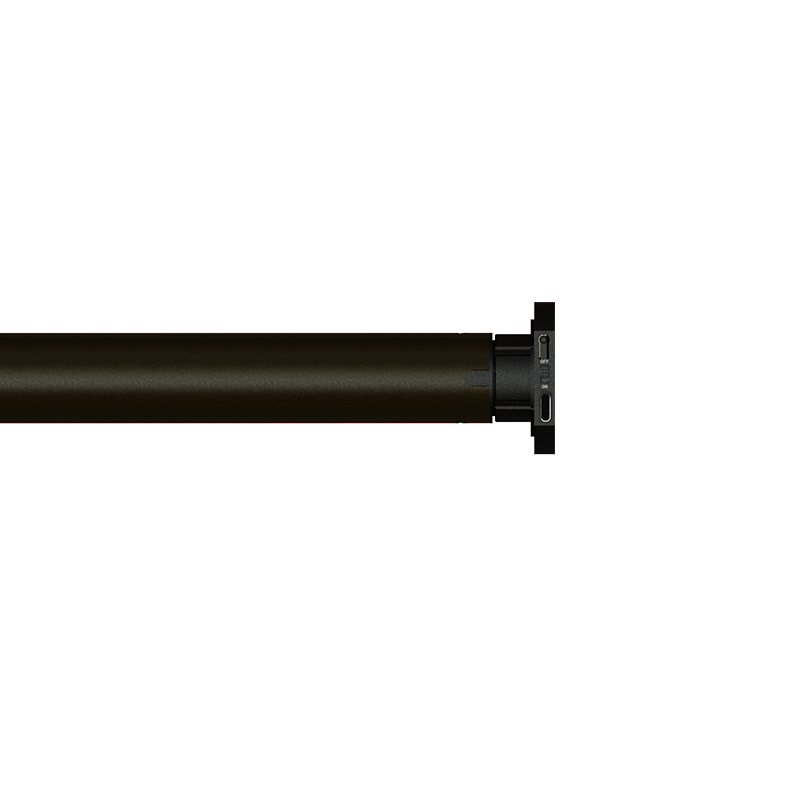

27MM Rechargeable Non-Resonance Silent Motor

1、 Features:

1. Ultra thin motor head: Small gap make your room more hidden,give you a deeper sleep and privacy;

2. No resonance: Reduce resonance design to make the motors quieter;

3. Built in antenna: Safer installation and simpler appearance;

4. Ultra-quiet motor: Silent inside motor and high-precision cold drawn tube, operation noise can low to 28 dB;

5. Bluetooth&APP Control by smartphone (compatible with Tuya Zigbee and Zigbee 3.0): Easy of operation,various control options for you to choose;

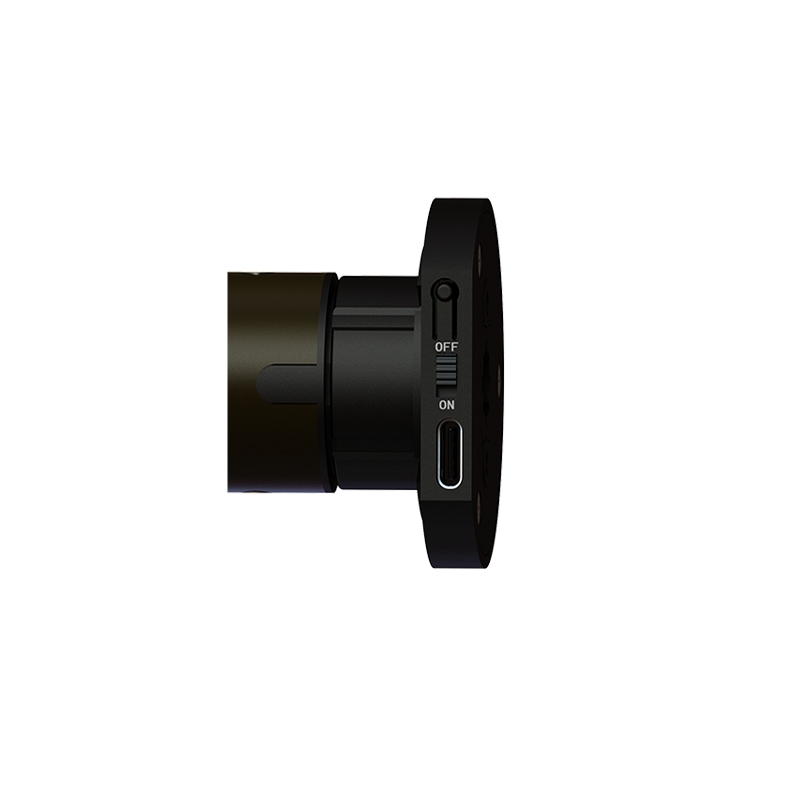

6. Rechargeable &Type-C Charge: Battery motor save  your time and cost of electricity.Turn off the battery in  transit,makes the battery safer and longer life. It can last 4-6 months after full charged.

2、 Power Solations:

1. Solar panel                                  2. Type-C charging



3、 Applications:



Roman blind                 Zebra curtain             Shangri La curtains

Technical parameters:

1. Torque (Nm): 1.1Nm/2Nm

2. Speed (rpm): 20-30rpm

3. Noise (dB): 28dB

4. Limit: Electronic limit

5. Anti static: ± 15KV

6. Load capacity (kg): 4.5KG/8.5KG

7. Working temperature: -10~60 ℃

8. Lithium battery capacity: 2000mAh/8.4V
