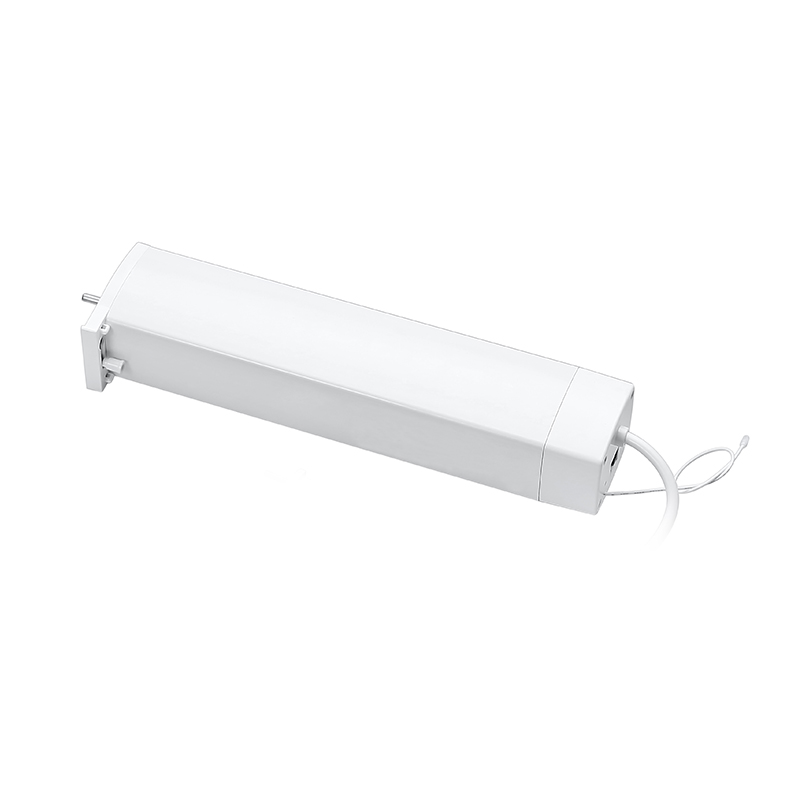

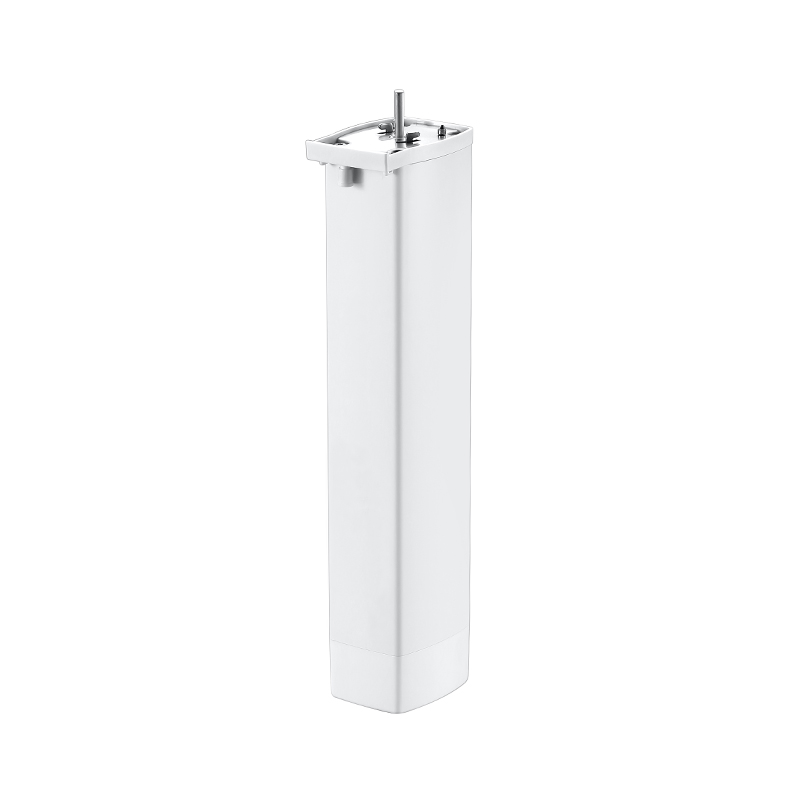

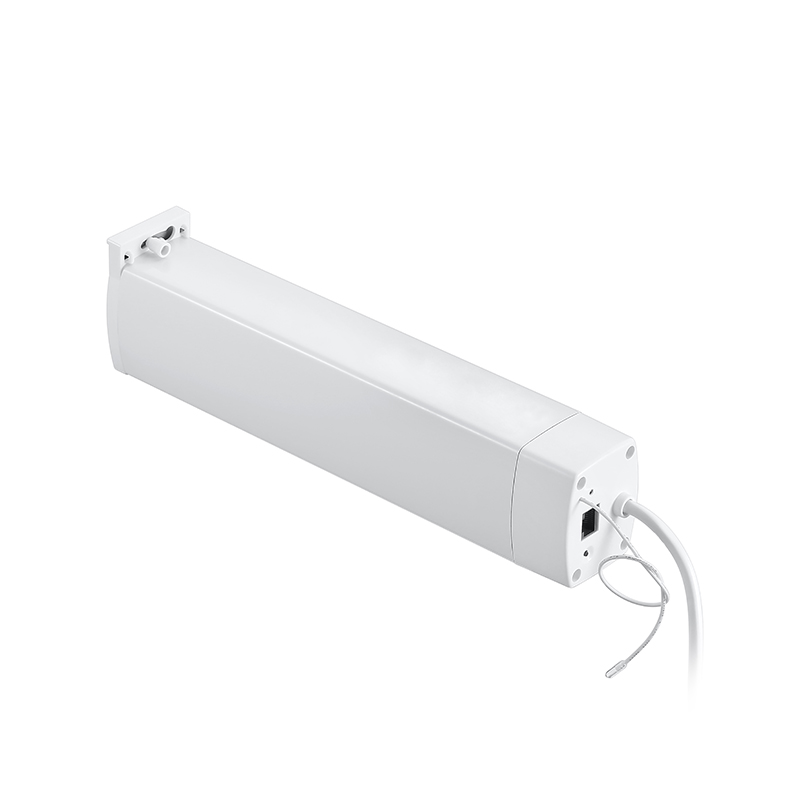

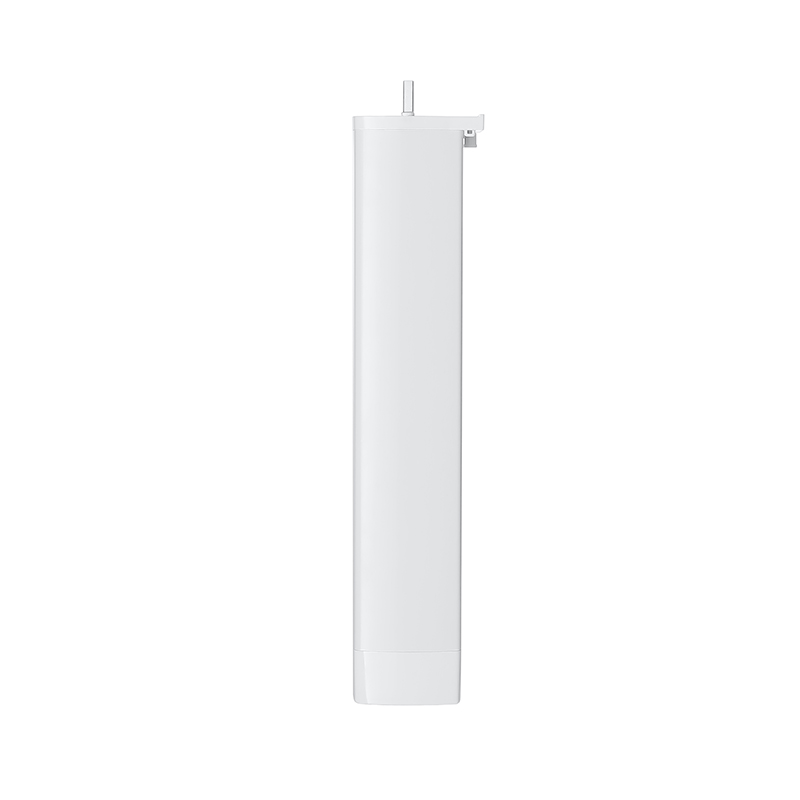

ZL82 Opening and Closing Curtain Motor Tmall Edition

一、 Features:

1. 2.4G reception signal is more stable, with 433 wireless reception;

2. Remote control, dry contact control, manual start;

3. Ultra quiet design;

4. Timing function;

5. 5-year warranty.

Technical parameters:

1. Input voltage: AC 100-240V 50/60Hz

2. Rated torque: 1.2Nm

3. Idle speed: 85rpm

4. Rated attack rate: 54W

5. Load bearing capacity: 50KG

6. Protection level: IP20

7. Motor dimensions: 60.8 * 50 * 297mm
