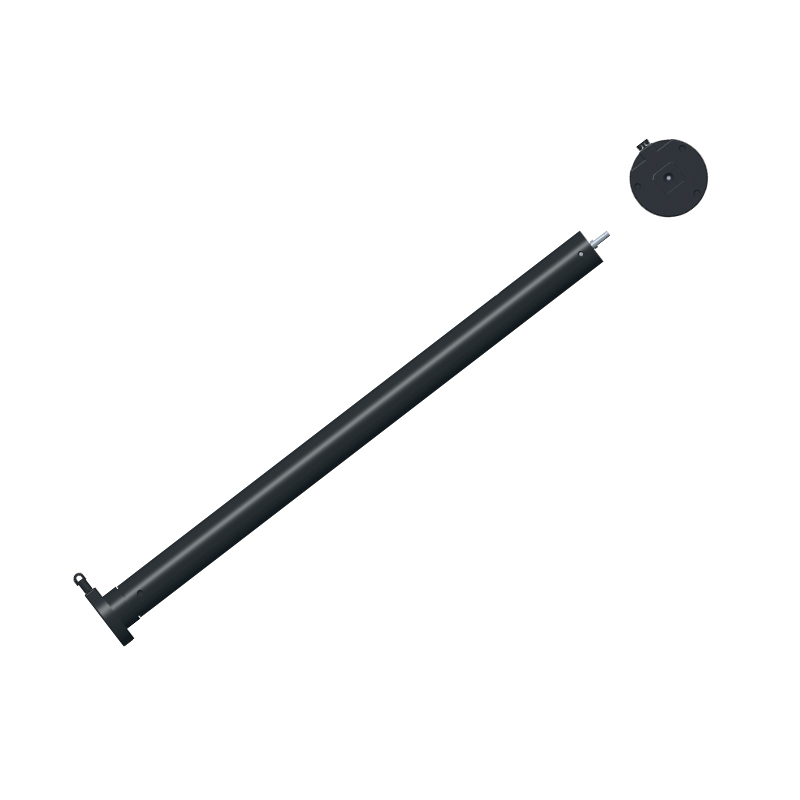

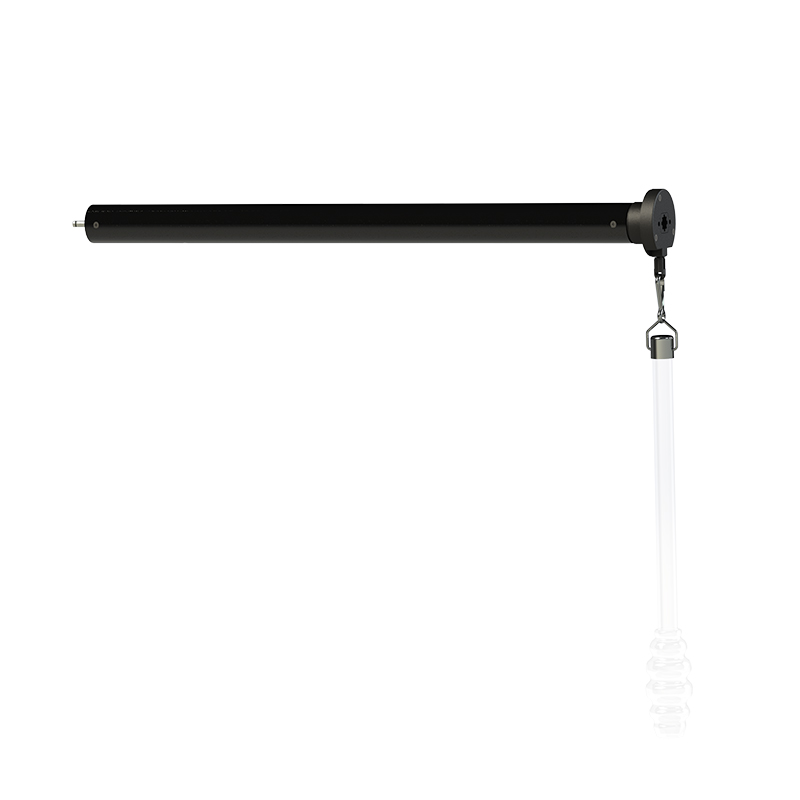

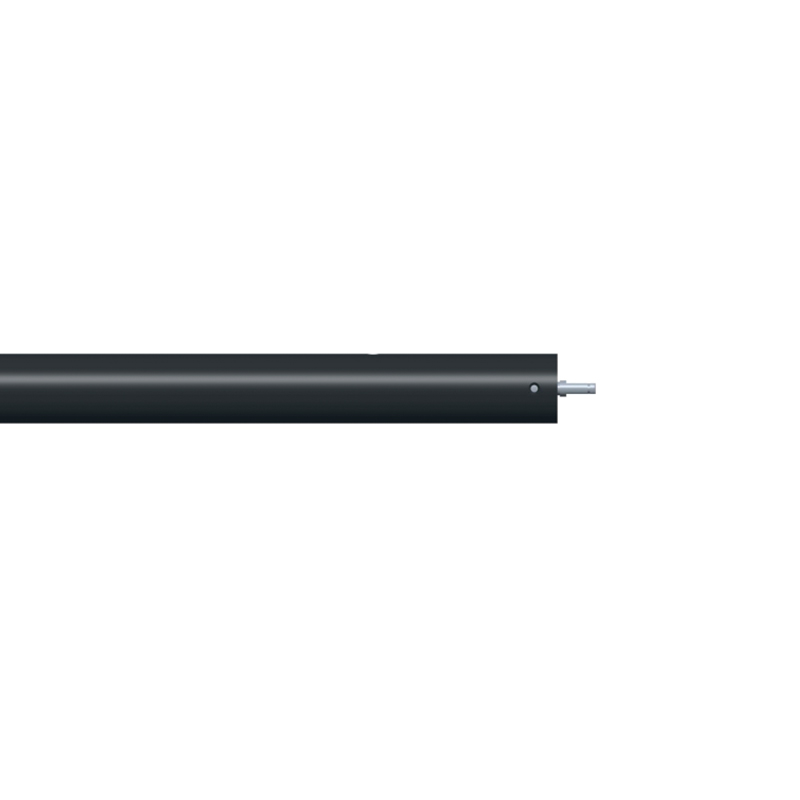

ERM25BQK 25MM锂电池手拉电机

一、 Features:

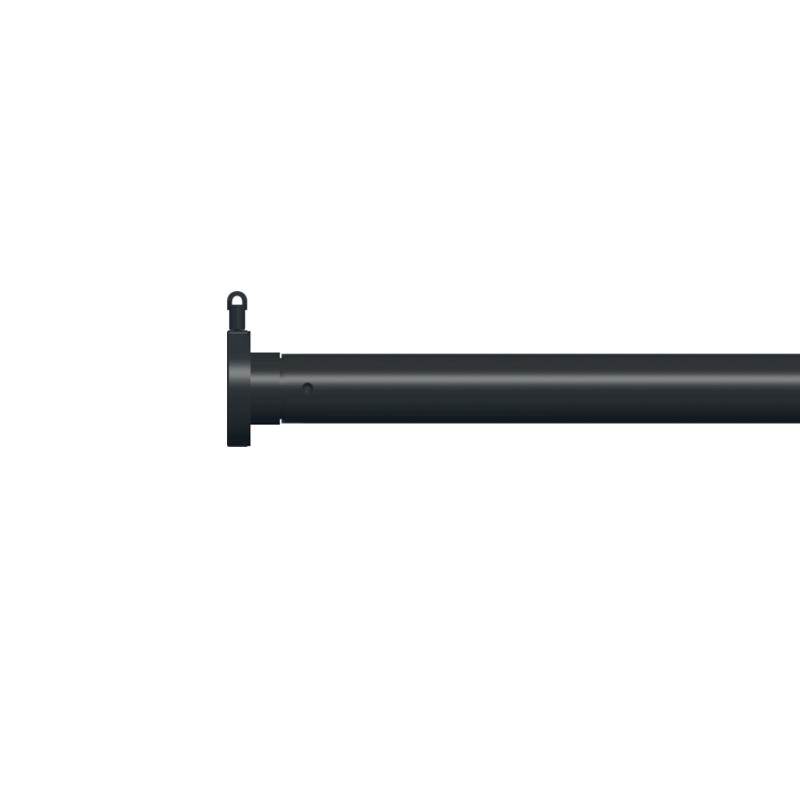

1. Ultra-thin motor head: Smaller gap make your room more hidden,give you a deeper sleep and privacy;

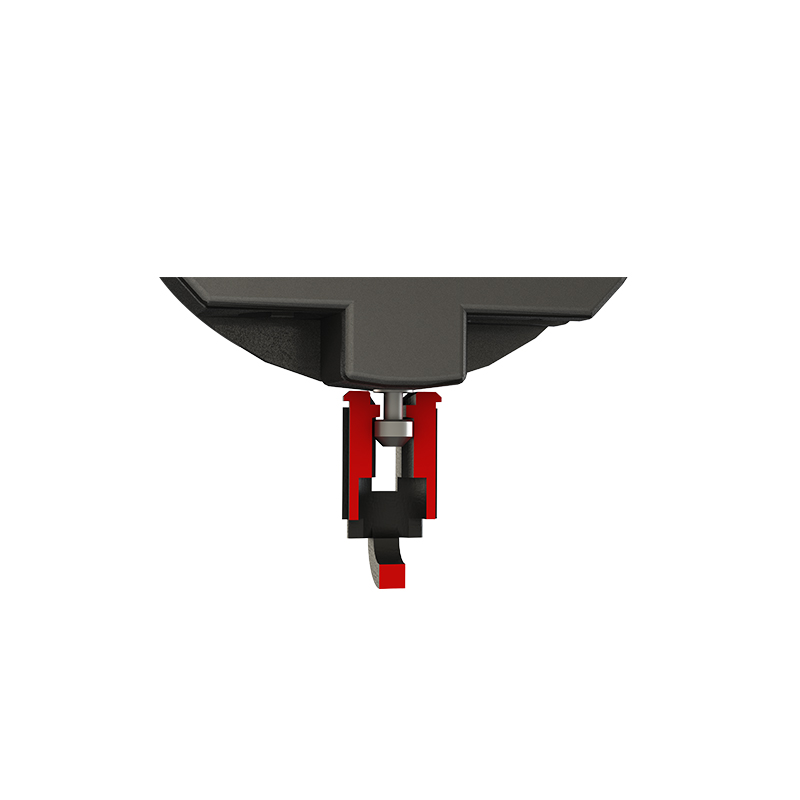

2. More Security&High Quality: With a special device to advoid pulling hard and the blind falling off or damaging the motor;

3. Ultra-Slient motor: Slient inside motor and high-precision cord drawn tube.Operation noise can low to 32dB;

4. Bluetooth&APP remote control by smartphone: Easy of operation,various control options for you choose;

5. Rechargeable&Type-C Charge: Battery motor save your time and cost of electricity.Turn off the battery safer and longer life.It can last 4-6 months after full charged.

2、 Power Solutions:

1. Solar panels                        2. Type-C charging



3、 Applications:



Roman blind                  Zebra blinds              Shangri La blinds

Technical parameters:

1. Torque (Nm): 1.1Nm

2. Speed (rpm): 20rpm

3. Noise (dB): 32dB

4. Limit: Electronic limit

5. Anti static: ± 15KV

6. Load capacity (kg): 4.5KG/8.5KG

7. Working temperature: -10~60 ℃

8. Lithium battery capacity: 2000mAh/8.4V
